    Piplus

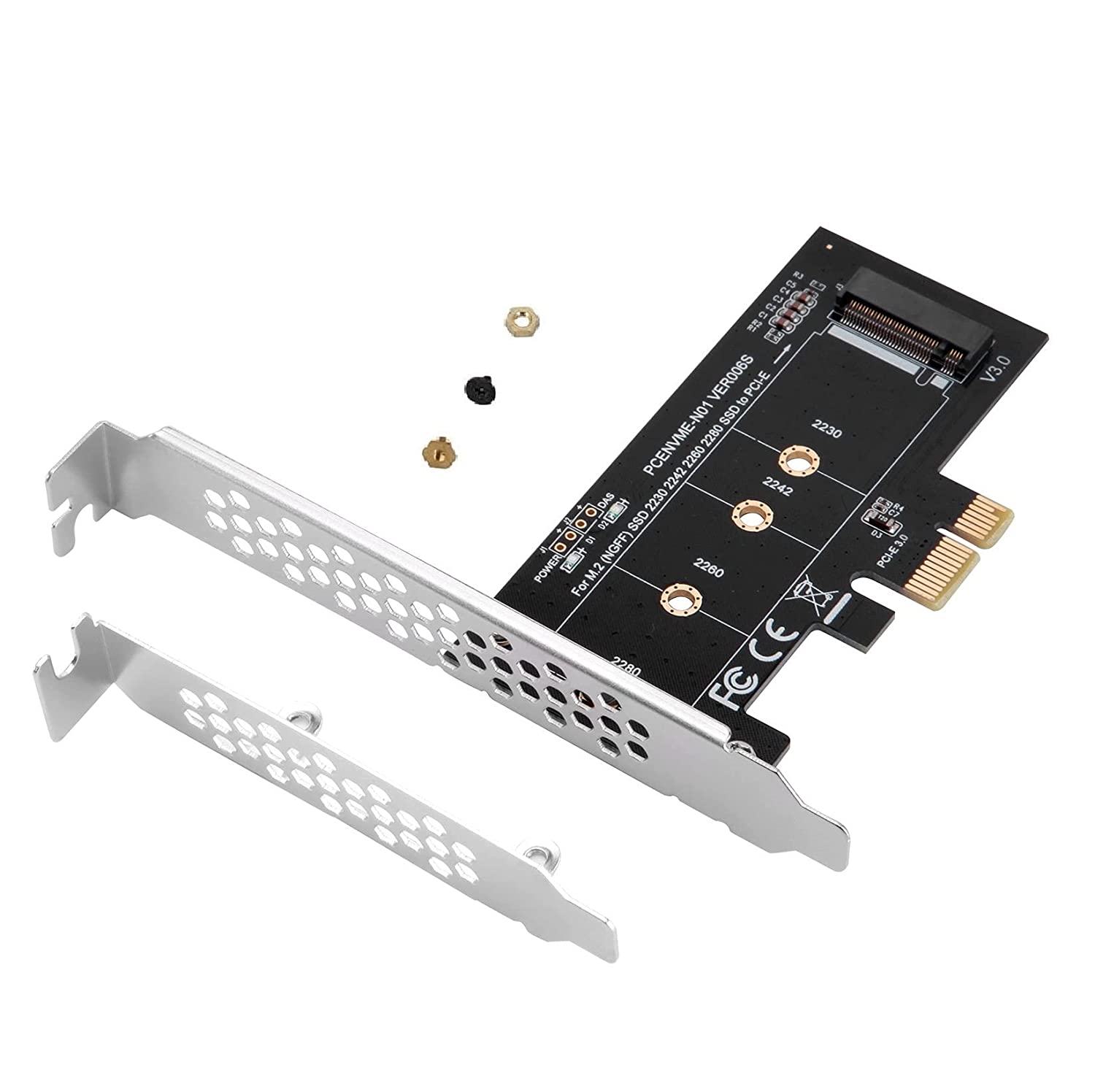

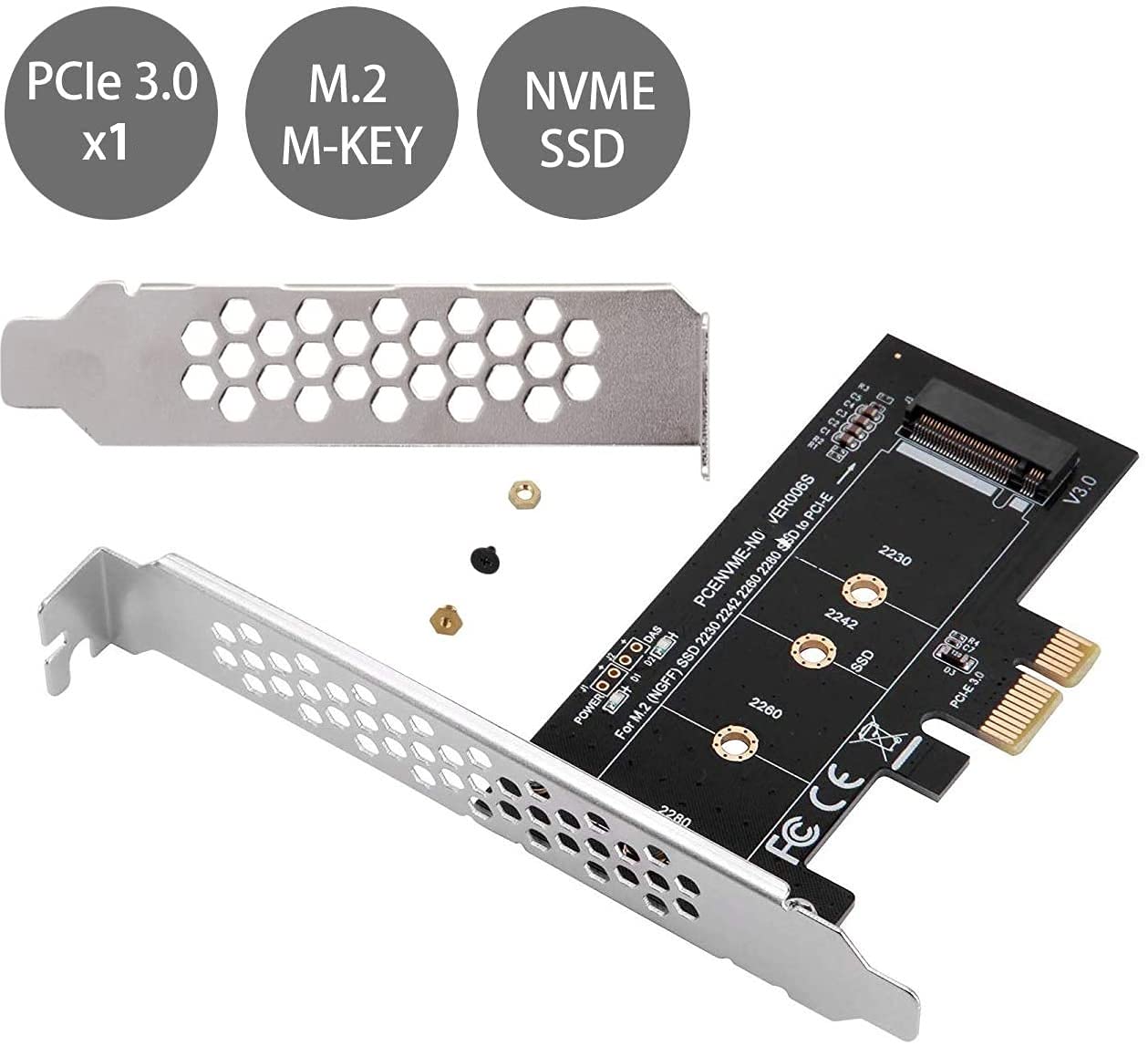

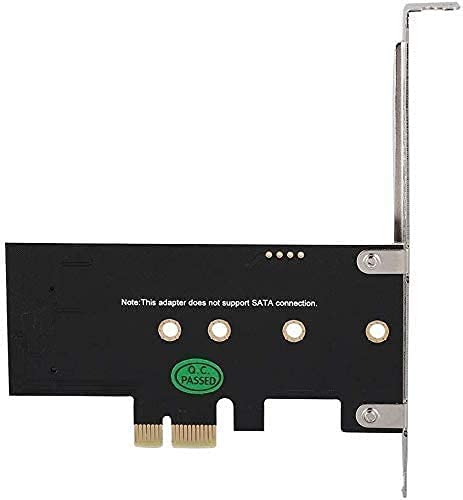

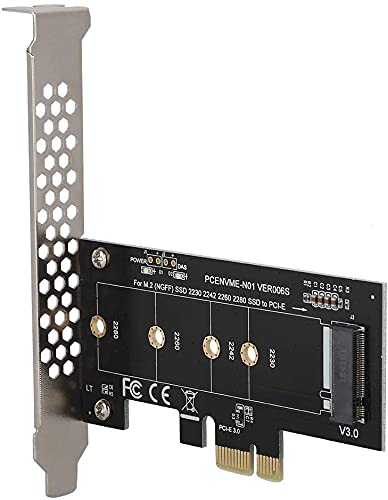

    Pi+ (PiPlus™) PCI-E x1 to M.2 NVMe SSD Expansion Card, PCI Express (1x) Expansion Card Converter for M2 NGFF NVME SSD

    Weight: 150g Grams

    0 Review
    Available

    Rs.1045.00

    Please Enter Value Less Than 5

    Description

    BrandPiplus
    Hardware InterfacePCI
    Item Dimensions LxWxH10 x 8 x 1 Centimeters
    Operating SystemLinux, Windows 10

    About this item

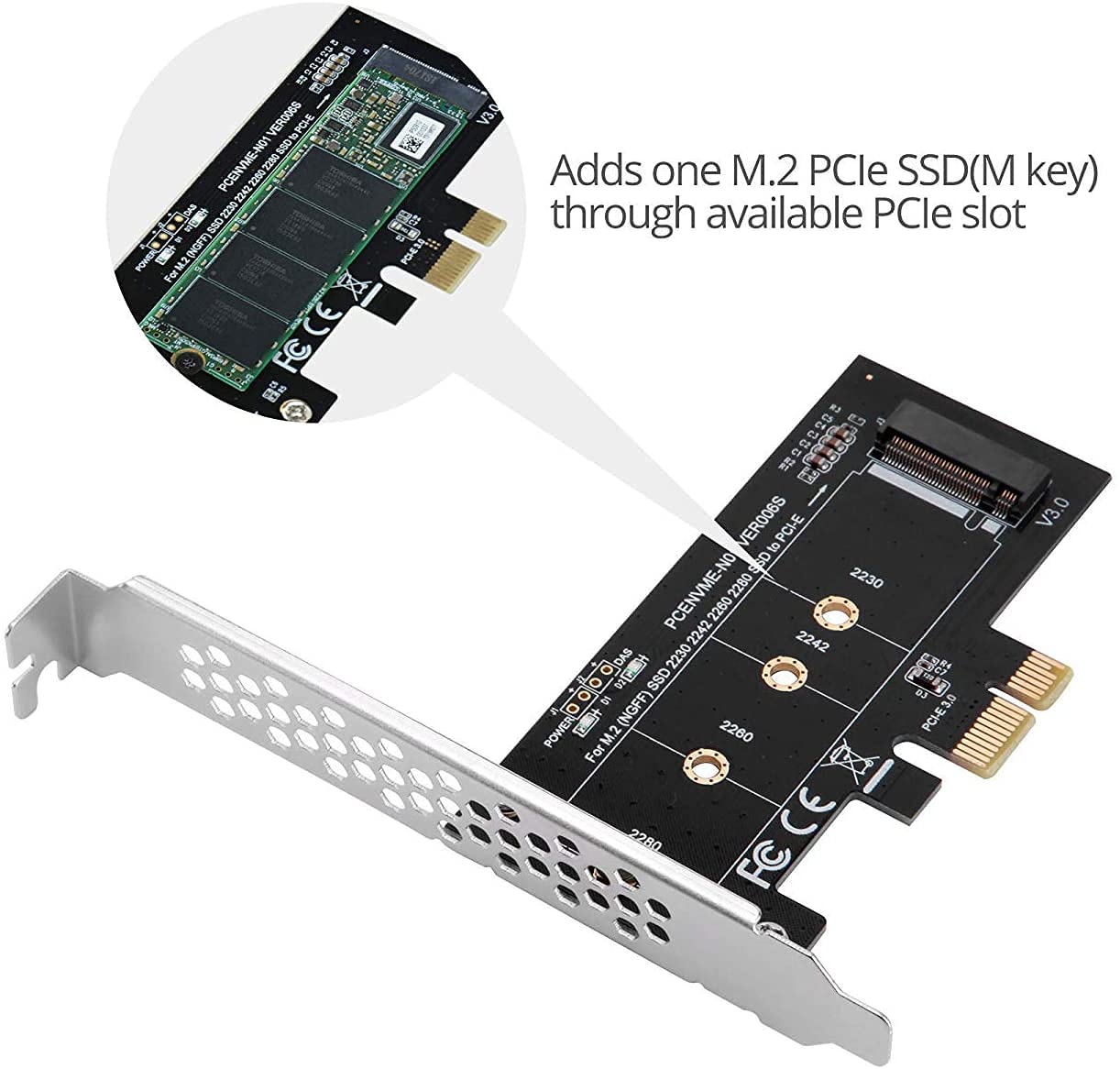

    • 【 VERSATILE APPLICATION&M KEY PCIe SSD CARD】Adds an M.2 PCIe SSD (M-Key) to your PCIe-equipped desktop computer (Windows 10, 8.x, 7, etc.) to significantly increase speed and performance. Supports PCIe 3.0 motherboards and is backward compatible with PCIe 1.0 and PCIe 2.0. Also supports PCIe x1 bus slot.
    • 【HIGH PERFORMANCE】 The NVMe PCIe card allows you add M.2 PCI-e NVMe SSD to your motherboard without M.2 slot, perfect solution for PC upgraded. Up to 3200+ MB/s random Read and 1500+ MB/s Write.
    • 【APPLICABLE SSD HARD DRIVE】The M.2 PCIe adapter ONLY supports PCI-e NVMe based M Key (NVMe & AHCI), NOT supports any SATA based SSD. Fit for PCIe x1/x4/ x8/ x16 slot.
    • 【 EASY SETUP】 No driver installation required (if an exclamation mark appears after installing the adapter, ask the SSD manufacturer to offer the NVME driver for SSD for PCIe). Includes both flat and full profile brackets for installing flexible system chassis, ideal for 2U enclosures.
    • 【INTUITIVE DESIGN】Suitable for 2230, 2242, 2260 and 2280 M.2 SSDs (NVMe or AHCI) over several mounting holes ! NOTE: Systems released before 2015 may not support NVMe SSDs. Please ask your system provider for compatible SSD.

    Product description

    Specification:
    Material: PCB
    Color: Black
    Name: PCI-E to M.2 expansion card
    Interface: PCI, PCI Express
    Size: approx. 12 * 9.2* 1.8cm/4.7 * 3.6 * 0.7in
    Package Weight: Approx. 69g / 2.4oz
    Support System: compatible with all WINDOWS systems, LINUX

    Package list:
    1 * M.2 to PCI-E3.0 X4 Expansion Card
    1 * Screw Pack

    Note:
    1. M.2 NGFF to PCI-E 14 expansion  card. Using this adapter, ordinary PCI-E 4X interface can be converted to M.2 NGFF interface.

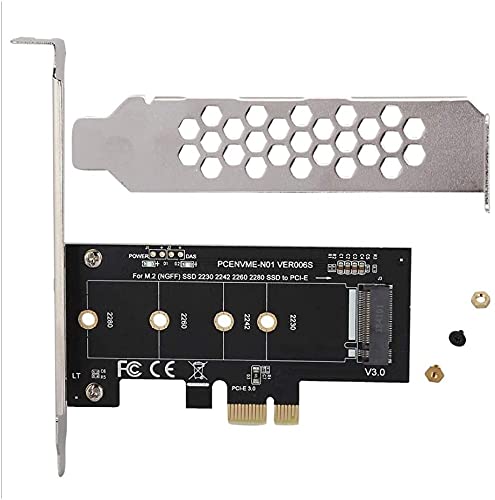

    2. There are four fixed holes on the board, 22*32 mm, 22*42 mm, 22*60 mm and 22*80 mm, respectively.
    3. Supports for PM961, 960 EVO, SM961, PM951, sm951, INTEL 600P, LITE-ON T10 NVME protocol M.2. does not support SATA protocol M.2.
    4. Standard version supports NVME M.2 of 2230 2242 2260 2280

    Return Policy

    No return on this product.
